Detailed Description

Paired Vector Comparer base class.

Compares two vectors. Number of elements must be the same in both vector. This is applied to:

comparing two classifiers (see reptt_sgs, which has a reptt_sgs::vectorcomp property)
measusing the diversity of two classifiers (example: reptt_xornorm)

Depending on the case (i.e., the vectorcomp descendant considered), the vectors must be classification rates or the class predictions themselves. See the descendant classes (i.e., classes vectorcomp_*)

Definition at line 9 of file vectorcomp.m.

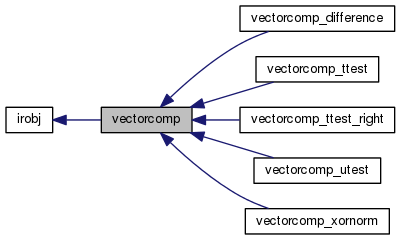

Inheritance diagram for vectorcomp:

Collaboration diagram for vectorcomp:

Public Member Functions
function	vectorcomp (in o)

function	test (in o, in v1, in v2)

function	crosstest (in o, in R)

function	get_description (in o, in flag_short)

function	setbatch (in o, in params)
	Sets several properties of an object at once. More...

function	get_methodname (in o, in flag_short)

function	get_report (in o)
	Object reports are plain text. HTML would be cool but c'mon, we don't need that sophistication. More...

function	get_html (in o, in flag_stylesheet)

function	get_params (in o, in data)
	Calls Parameters GUI. More...

function	extract_log (in o)

function	get_ancestry (in o, in flag_title)

Public Attributes
Property	title

Property	color

Protected Member Functions
function	do_test (in o, in vv)

function	do_get_report (in o)
	Default report. More...

function	do_get_html (in o)
	Abstract. HTML inner body. More...

Protected Attributes
Property	classtitle
	Class Title. Should have a descriptive name, as short as possible. More...

Property	short
	Short for the method name. More...

Property	flag_params

Property	flag_ui
	(GUI setting) Whether to "publish" in blockmenu and datatool. Note that a class can be "published" without a GUI (set flag_params=0 in this case, at the class constructor). More...

Property	moreactions
	(GUI setting) String cell containing names of methods that may be called from the GUIs More...

Constructor & Destructor Documentation

function vectorcomp::vectorcomp ( in o )

Member Function Documentation

function vectorcomp::crosstest	(	in	o,
		in	R
	)

Cross-test of many vectors

Performs the test with all combinations of the columns of R

The resulting table should be read as: the row represents the first variable and the column represents the second variable.

Examples:

for a 2-sided t-test: H0: mean_row_i - mean_col_j = 0
for a right-tail t-test: H0: mean_row_i - mean_col_j < 0

Parameters

o
R	a matrix of shape [v1, v2, v3, v4, ...]

Returns: a matrix [number of v's]x[number of v's]

function irobj::do_get_html ( in o )

protectedinherited

Abstract. HTML inner body.

function irobj::do_get_report ( in o )

protectedinherited

Default report.

function vectorcomp::do_test	(	in	o,
		in	vv
	)

protected

function irobj::extract_log ( in o )

inherited

Parameters

o

Returns: [o, log]

function irobj::get_ancestry	(	in	o,
		in	flag_title
	)

inherited

Parameters

o
flag_title=1

function irobj::get_description	(	in	o,
		in	flag_short
	)

inherited

Returns description string

Precedence according with flag_short:

0: title > short > classtitle
1: short > title > classtitle

Parameters

flag_short=0 I am sealing this to make sure that no class will try to improvise on this function.

function irobj::get_html	(	in	o,
		in	flag_stylesheet
	)

inherited

Parameters

flag_stylesheet=1 Whether to include the stylesheet in the HTML

function irobj::get_methodname	(	in	o,
		in	flag_short
	)

inherited

This is used only to compose sequence string e.g. xxx->yyy->zzz

Parameters

flag_short=0

function irobj::get_params	(	in	o,
		in	data
	)

inherited

Calls Parameters GUI.

If flag_params, tries uip_<class>.m. If fails, tries uip_<ancestor>.m and so on

function irobj::get_report ( in o )

inherited

Object reports are plain text. HTML would be cool but c'mon, we don't need that sophistication.

function irobj::setbatch	(	in	o,
		in	params
	)

inherited

Sets several properties of an object at once.

Parameters

o
params	Cell followint the pattern {'property1', value1, 'property2', value2, ...}

function vectorcomp::test	(	in	o,
		in	v1,
		in	v2
	)

Member Data Documentation

Property irobj::classtitle

protectedinherited

Class Title. Should have a descriptive name, as short as possible.

Definition at line 50 of file irobj.m.

Property irobj::color

inherited

=[0, .8, 0]. multipurpose feature, routines may use it for different things. Major use is to change the background of objtool and blockmenu. See also classes_html.m

Definition at line 42 of file irobj.m.

Property irobj::flag_params

protectedinherited

=1. (GUI setting) Whether to call a GUI when the block is selected in blockmenu.m . If true, a routine called "uip_"<class name> will be called.

Definition at line 57 of file irobj.m.

Property irobj::flag_ui

protectedinherited

(GUI setting) Whether to "publish" in blockmenu and datatool. Note that a class can be "published" without a GUI (set flag_params=0 in this case, at the class constructor).

Definition at line 60 of file irobj.m.

Property irobj::moreactions

protectedinherited

(GUI setting) String cell containing names of methods that may be called from the GUIs

Definition at line 63 of file irobj.m.

Property irobj::short

protectedinherited

Short for the method name.

Definition at line 53 of file irobj.m.

Property irobj::title

inherited

Definition at line 38 of file irobj.m.

The documentation for this class was generated from the following file:

vectorcomp.m
