Detailed Description

Estimation logs base class.

Records hits 3D matrix (:)(:)x(time)

Definition at line 4 of file estlog.m.

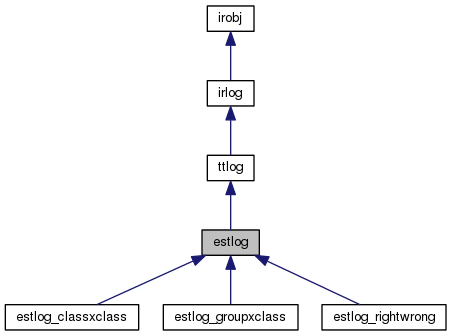

Inheritance diagram for estlog:

Collaboration diagram for estlog:

Public Member Functions
function get	flag_rejected (in o)

function	estlog ()

function get	collabels (in o)
	Getter for `collabels` property, calls `get_collabels()` . More...

function get	rowlabels (in o)
	Getter for `rowlabels` property, calls `get_rowlabels()` . More...

function	record (in o, in pars)

function	get_weights (in o, in t, in normtype)
	Calculates 0/w weights for (row)x(time) More...

function	get_C (in o, in t, in flag_perc, in aggr, in flag_discount_rejected)
	Flexible function to return a calculation over the "hits" matrix (or parts thereof) More...

function	get_C_supp (in o, in t, in aggr)
	Gets the recorded supports. More...

function	get_confusion_from_C (in o, in C, in flag_perc)

function	get_confusion_sup (in o, in t, in aggr)

function	get_confusion (in o, in t, in flag_perc, in aggr, in flag_discount_rejected)

function	get_insane_html (in o, in pars)

function	extract_datasets (in o)

function	extract_datasets_sup (in o, in ij)

function	get_rate (in o)
	Abstract. Classification rate, accuracy, performance or whatever. More...

function	get_rates (in o)
	Abstract. Classification rate vector calculated time-wise. More...

function	extract_confusion (in o)

function	get_flag_perc (in o)
	Whether the values returned by get_rate() and get_rates() are percentages or not. Returns TRUE. More...

function	get_unit (in o)

function	allocate (in o, in tt)
	Called to pre-allocate matrices after `classlabels` and `rowlabels` are set. More...

function	get_legend (in o)
	Returns the default "Rate" string. Note that the `title` property can be used. More...

function	get_format (in o)
	Returns format for sprintf() More...

function	get_description (in o, in flag_short)

function	setbatch (in o, in params)
	Sets several properties of an object at once. More...

function	get_methodname (in o, in flag_short)

function	get_report (in o)
	Object reports are plain text. HTML would be cool but c'mon, we don't need that sophistication. More...

function	get_html (in o, in flag_stylesheet)

function	get_params (in o, in data)
	Calls Parameters GUI. More...

function	extract_log (in o)

function	get_ancestry (in o, in flag_title)

Public Attributes
Property	flag_support

Property	flag_rejected

Property	hits
	3D matrix: (number of groups)x(number of classes in `labels_cols` + 1)x(time) More...

Property	flag_inc_t
	=1. Whether to increment time whenever something is recorded More...

Property	t
	"Time", incremented every time `record()` is called. Reset to zero if `allocate()` is called. More...

Property	title

Property	color

Protected Member Functions
function	do_record (in o, in pars)
	Abstract. More...

function	get_collabels (in o)
	Abstract. More...

function	get_rowlabels (in o)
	Abstract. More...

function	do_allocate (in o, in tt)

function	do_get_report (in o)
	Default report. More...

function	do_get_html (in o)
	Abstract. HTML inner body. More...

Protected Attributes
Property	supports
	Same size as hits, but it is a cell of vectors. More...

Property	flag_sensspec
	Whether the class is able to produce the sensitivity and specificity figures. More...

Property	flag_allocated
	Whether `allocate()` has been called. More...

Property	no_slots
	Number of allocated slots (call to allocate()) More...

Property	classtitle
	Class Title. Should have a descriptive name, as short as possible. More...

Property	short
	Short for the method name. More...

Property	flag_params

Property	flag_ui
	(GUI setting) Whether to "publish" in blockmenu and datatool. Note that a class can be "published" without a GUI (set flag_params=0 in this case, at the class constructor). More...

Property	moreactions
	(GUI setting) String cell containing names of methods that may be called from the GUIs More...

Constructor & Destructor Documentation

function estlog::estlog ( )

Member Function Documentation

function ttlog::allocate	(	in	o,
		in	tt
	)

inherited

Called to pre-allocate matrices after classlabels and rowlabels are set.

function get estlog::collabels ( in o )

Getter for collabels property, calls get_collabels() .

function estlog::do_allocate	(	in	o,
		in	tt
	)

protected

function irobj::do_get_html ( in o )

protectedinherited

Abstract. HTML inner body.

function irobj::do_get_report ( in o )

protectedinherited

Default report.

function estlog::do_record	(	in	o,
		in	pars
	)

protected

Abstract.

function estlog::extract_confusion ( in o )

function estlog::extract_datasets ( in o )

Generates one dataset per row containing percentages. The i-th dataset, j-th feature corresponds to the classification rates of consufion cell (i, j) (rejected included)

function estlog::extract_datasets_sup	(	in	o,
		in	ij
	)

Each cell needs be a different dataset because number of supports (therefore dataset's no ) is different for each cell.

Parameters

ij	(number of datasets)x(2) containing coordinates from the confusion matrix to extract supports from. Please note that j=1 is the "rejected" column, not the first colummn class.

function irobj::extract_log ( in o )

inherited

Parameters

o

Returns: [o, log]

function get estlog::flag_rejected ( in o )

function irobj::get_ancestry	(	in	o,
		in	flag_title
	)

inherited

Parameters

o
flag_title=1

function estlog::get_C	(	in	o,
		in	t,
		in	flag_perc,
		in	aggr,
		in	flag_discount_rejected
	)

Flexible function to return a calculation over the "hits" matrix (or parts thereof)

Example: get_C([], 1, 2, 1) Gets average percentage with discounted rejected items

Parameters

t	=(all). Pre-selection of specific times
flag_perc1	=0. Whether to calculate percentages already at each time instant
aggr	Time-wise Aggregation: `0` - none `1` - Sum `2` - time-wise Sum -> row-wise normalization (rows sum to 1, except if total sum is zero) `3` - Mean `4` - Standard Deviation
flag_discount_rejected	=1. Whether to discount the rejected items from percentages. Only applicable if `flag_perc` is true

Returns: C

Note: Percentual outputs range from 0 to 100, not from 0 to 1

function estlog::get_C_supp	(	in	o,
		in	t,
		in	aggr
	)

Gets the recorded supports.

Aggregation:
- 0 - INVALID
- 1 - INVALID
- 2 - INVALID
- 3 - Mean
- 4 - Standard Deviation
5 - Minimum

6 - Maximum

function estlog::get_collabels ( in o )

protected

Abstract.

function estlog::get_confusion	(	in	o,
		in	t,
		in	flag_perc,
		in	aggr,
		in	flag_discount_rejected
	)

See also: estlog::get_C()

function estlog::get_confusion_from_C	(	in	o,
		in	C,
		in	flag_perc
	)

function estlog::get_confusion_sup	(	in	o,
		in	t,
		in	aggr
	)

function irobj::get_description	(	in	o,
		in	flag_short
	)

inherited

Returns description string

Precedence according with flag_short:

0: title > short > classtitle
1: short > title > classtitle

Parameters

flag_short=0 I am sealing this to make sure that no class will try to improvise on this function.

function estlog::get_flag_perc ( in o )

Whether the values returned by get_rate() and get_rates() are percentages or not. Returns TRUE.

function ttlog::get_format ( in o )

inherited

Returns format for sprintf()

function irobj::get_html	(	in	o,
		in	flag_stylesheet
	)

inherited

Parameters

flag_stylesheet=1 Whether to include the stylesheet in the HTML

function estlog::get_insane_html	(	in	o,
		in	pars
	)

Parameters

flag_individual Whether to print time snapshots as well.

function ttlog::get_legend ( in o )

inherited

Returns the default "Rate" string. Note that the title property can be used.

function irobj::get_methodname	(	in	o,
		in	flag_short
	)

inherited

This is used only to compose sequence string e.g. xxx->yyy->zzz

Parameters

flag_short=0

function irobj::get_params	(	in	o,
		in	data
	)

inherited

Calls Parameters GUI.

If flag_params, tries uip_<class>.m. If fails, tries uip_<ancestor>.m and so on

function estlog::get_rate ( in o )

Abstract. Classification rate, accuracy, performance or whatever.

function estlog::get_rates ( in o )

Abstract. Classification rate vector calculated time-wise.

function irobj::get_report ( in o )

inherited

Object reports are plain text. HTML would be cool but c'mon, we don't need that sophistication.

function estlog::get_rowlabels ( in o )

protected

Abstract.

function estlog::get_unit ( in o )

function estlog::get_weights	(	in	o,
		in	t,
		in	normtype
	)

Calculates 0/w weights for (row)x(time)

0 < w < 1

Parameters

t	=(1:o.t) Time vector to select only a few time instants
normtype	= 0 `0` Non-zero weights are all ones `1` Weights are normalized so the rows add to 1 `2` Weights are normalized so that the columns add to 1

Returns: A (no_rows)x(o.t) matrix of 0/w to be used as weights.

function estlog::record	(	in	o,
		in	pars
	)

function get estlog::rowlabels ( in o )

Getter for rowlabels property, calls get_rowlabels() .

function irobj::setbatch	(	in	o,
		in	params
	)

inherited

Sets several properties of an object at once.

Parameters

o
params	Cell followint the pattern {'property1', value1, 'property2', value2, ...}

Member Data Documentation

Property irobj::classtitle

protectedinherited

Class Title. Should have a descriptive name, as short as possible.

Definition at line 50 of file irobj.m.

Property irobj::color

inherited

=[0, .8, 0]. multipurpose feature, routines may use it for different things. Major use is to change the background of objtool and blockmenu. See also classes_html.m

Definition at line 42 of file irobj.m.

Property ttlog::flag_allocated

protectedinherited

Whether allocate() has been called.

Definition at line 16 of file ttlog.m.

Property ttlog::flag_inc_t

inherited

=1. Whether to increment time whenever something is recorded

Definition at line 10 of file ttlog.m.

Property irobj::flag_params

protectedinherited

=1. (GUI setting) Whether to call a GUI when the block is selected in blockmenu.m . If true, a routine called "uip_"<class name> will be called.

Definition at line 57 of file irobj.m.

Property estlog::flag_rejected

Whether there is a "refuse-to-decide" potential situation (usually the decider of the object that generated the estlog has a threshold > 0). It is automatically determined by verifying whether there is a non-zero element in the first column

Definition at line 26 of file estlog.m.

Property estlog::flag_sensspec

protected

Whether the class is able to produce the sensitivity and specificity figures.

Definition at line 35 of file estlog.m.

Property estlog::flag_support

=0. Whether or not to record the "supports" (confidence levels issued by classifiers). The default behaviour is to only count the hits for each "time" instant. Recording all the individual supports can generate a lot of data, but will allow one to plot the distribution of supports later.

Definition at line 19 of file estlog.m.

Property irobj::flag_ui

protectedinherited

(GUI setting) Whether to "publish" in blockmenu and datatool. Note that a class can be "published" without a GUI (set flag_params=0 in this case, at the class constructor).

Definition at line 60 of file irobj.m.

Property estlog::hits

3D matrix: (number of groups)x(number of classes in labels_cols + 1)x(time)

Definition at line 41 of file estlog.m.

Property irobj::moreactions

protectedinherited

(GUI setting) String cell containing names of methods that may be called from the GUIs

Definition at line 63 of file irobj.m.

Property ttlog::no_slots

protectedinherited

Number of allocated slots (call to allocate())

Definition at line 19 of file ttlog.m.

Property irobj::short

protectedinherited

Short for the method name.

Definition at line 53 of file irobj.m.

Property estlog::supports

protected

Same size as hits, but it is a cell of vectors.

Definition at line 32 of file estlog.m.

Property ttlog::t

inherited

"Time", incremented every time record() is called. Reset to zero if allocate() is called.

Definition at line 33 of file ttlog.m.

Property irobj::title

inherited

Definition at line 38 of file irobj.m.

The documentation for this class was generated from the following file:

estlog.m
