block_cascade_base Class Reference

Detailed Description

Cascade block: sequence of blocks represented by a block.

Cascade blocks can mimic the behaviour of linear transformation blocks (fcon_linear; such as PCA) if it contains one or more such blocks. It has all the properties that a fcon_linear block has, however its valid functioning will depend on the component blocks. The loadings matrix is calculated by multiplying the loadings matrix of successive component blocks.

• boot: all component blocks booted
• train: after training first block, training data is inputted into it to get the training data to the second block etc
• use: output of (k-1)-th block is inputted into k-th block

See also

uip_block_cascade_base.m, blsp_crossc

Definition at line 14 of file block_cascade_base.m.

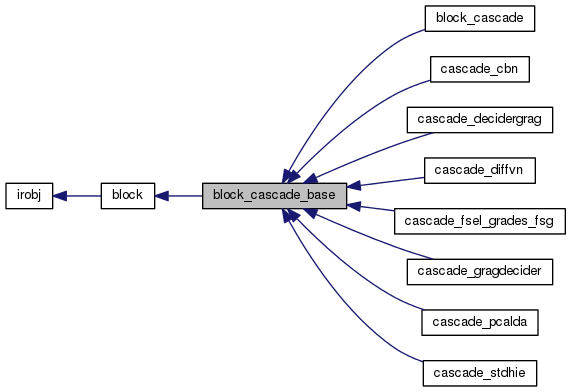

Inheritance diagram for block_cascade_base:

Collaboration diagram for block_cascade_base:

Public Member Functions
function	block_cascade_base ()
function get	no_blocks (in o)
function get	L (in o)
function get	L_fea_x (in o)
function get	xname (in o)
function get	xunit (in o)
function get	yname (in o)
function get	yunit (in o)
function get	classlabels (in o)
function get	v (in o)
	Retrieves v from last block. More...
function get	decisionthreshold (in o)
	Retrieves decisionthreshold from the decider that if finds. More...
function	extract_fcon_linear_fixed (in o)
	Extracts fcon_linear_fixed with same Loadings Matrix. More...
function	get_L_fea_x (in o)
function	get_xname (in o)
function	get_xunit (in o)
	Feature names: takes the xname property from the first linear block. More...
function	get_yname (in o)
function	get_yunit (in o)
function	get_methodname (in o, in flag_short)
	Calls get_methodname() for all blocks. More...
function	get_L_fea_names (in o, in idxs)
function	get_loadings (in o)
function	get_grades (in o, in params)
	Abstract. Method to get the per-feature grades. BMTool stuff. More...
function	get_gradeslegend (in o, in params)
	Abstract. Method to get block title based on passed parameters. BMTool stuff. More...
function	use (in o, in data)
	Applies block to data. More...
function	train (in o, in data, in varargin)
	Trains block. More...
function	boot (in o)
	Configures the structure to deal with new type of data. More...
function	get_description (in o, in flag_short)
function	setbatch (in o, in params)
	Sets several properties of an object at once. More...
function	get_report (in o)
	Object reports are plain text. HTML would be cool but c'mon, we don't need that sophistication. More...
function	get_html (in o, in flag_stylesheet)
function	get_params (in o, in data)
	Calls Parameters GUI. More...
function	extract_log (in o)
function	get_ancestry (in o, in flag_title)

Public Attributes
Property	blocks
	Cell of block objects. More...
Property	flag_crossc
Property	sgs_crossc
	SGS to do the cross-calculations when necessary. If needed and empty, a default one will be used. More...
Property	L
Property	L_fea_names
	Loadings feature names. fcon_linear mimicking. More...
Property	L_fea_x
	Feature x-axis. fcon_linear mimicking. Retrieves the L_fea_x from the first block. More...
Property	xname
	x-axis name. fcon_linear mimicking. Retrieves the xname from the first block. More...
Property	xunit
Property	yname
Property	yunit
Property	classlabels
	Class labels. clssr mimicking. Retrieves the classlabels property from the last block. More...
Property	v
	Feature indexes. fsel mimicking. Retrieves the v property from the last block. More...
Property	decisionthreshold
Property	title
Property	color

Protected Member Functions
function	assert_checked (in o)
	BLock needs to keep up-to-date with contents. More...
function	do_check (in o)
function	do_boot (in o)
	Boots every encapsulated block. More...
function	do_train (in o, in data)
function	do_use (in o, in data)
function	assert_fcon_linear (in o)
	Makes sure that the block can mimic a linear block. More...
function	get_linear1 (in o)
	Retrieves the first linear block. More...
function	do_get_report (in o)
function	do_get_html (in o)
	Abstract. HTML inner body. More...

Protected Attributes
Property	no_blocks
	Number of blocks. More...
Property	flag_fcon_linear
	Whether the block is able to mimic a fcon_linear. This is calculated at boot time. More...
Property	flag_decider
	Whether the block is able to mimic a decider. This is calculated at boot time. More...
Property	idx_linear1
	Index of first linear block. This is calculated at boot time. More...
Property	idx_decider
	Index of decider. This is calculated at boot time. More...
Property	flag_checked
Property	inputclass
Property	flag_bootable
	=0. (High-Level setting and internal function) Whether or not the block is bootable. More...
Property	flag_trainable
	=0. (High-Level + internal function). Whether or not the block can be trained, or completely non-data-based. More...
Property	flag_incrtrain
Property	flag_fixednf
	=1. (internal function) If true, dataset number of features will be checked upon training and using. Ignored if o.flag_trainable is 0. More...
Property	flag_fixedno
	=0. (internal function) If true, dataset number of observations will be checked upon training and using. Ignored if o.flag_trainable is 0. More...
Property	flag_multiin
	=0. (High-Level setting (gencode)) Whether block allows/expects multiple objects as input. More...
Property	flag_out
	=1. (High-Level setting (gencode)) Whether the block generates any output at all (counterexample: vis blocks) More...
Property	flag_train_inliers_only
Property	flag_train_require_inliers
Property	nf
	=-1. Number of features. Cleared at boot(), assigned or reinforced at train(). More...
Property	no
	=-1. Number of observations. More...
Property	flag_trained
	=0. Set to 1 by train() if training is successful; set back to 0 after booting. More...
Property	flag_booted
	=0. Set to 1 by boot() after booting the block More...
Property	time_train
	Trainings time. More...
Property	time_use
	Use time. More...
Property	classtitle
	Class Title. Should have a descriptive name, as short as possible. More...
Property	short
	Short for the method name. More...
Property	flag_params
Property	flag_ui
	(GUI setting) Whether to "publish" in blockmenu and datatool. Note that a class can be "published" without a GUI (set flag_params=0 in this case, at the class constructor). More...
Property	moreactions
	(GUI setting) String cell containing names of methods that may be called from the GUIs More...

Constructor & Destructor Documentation

function block_cascade_base::block_cascade_base

(

)

Member Function Documentation

function block_cascade_base::assert_checked ( in  o )

protected

BLock needs to keep up-to-date with contents.

function block_cascade_base::assert_fcon_linear ( in  o )

protected

Makes sure that the block can mimic a linear block.

function block::boot ( in  o )

inherited

Configures the structure to deal with new type of data.

Booting accounts for clearing any recordings; model structure; stored data etc from the object so that it can be re-used anew.

function get block_cascade_base::classlabels

(

in

o

)

Other getters call yet another function, I don't know exactly why. I won't do this here because this may be called many times.

function get block_cascade_base::decisionthreshold

(

in

o

)

Retrieves decisionthreshold from the decider that if finds.

function block_cascade_base::do_boot ( in  o )

protected

Boots every encapsulated block.

function block_cascade_base::do_check ( in  o )

protected

function irobj::do_get_html ( in  o )

protectedinherited

Abstract. HTML inner body.

function block_cascade_base::do_get_report ( in  o )

protected

function block_cascade_base::do_train ( in  o, in  data  )

protected

Trains every encapsulated block

Todo:

think about stacked generalization

function block_cascade_base::do_use ( in  o, in  data  )

protected

output of (k-1)-th block is inputted into k-th block. Final output is the output of the end-th block.

Skips any blmisc_rowsout block (outlier remover)

function block_cascade_base::extract_fcon_linear_fixed

(

in

o

)

Extracts fcon_linear_fixed with same Loadings Matrix.

function irobj::extract_log ( in  o )

inherited

Parameters

o

Returns

[o, log]

function irobj::get_ancestry ( in  o, in  flag_title  )

inherited

Parameters

o
flag_title=1

function irobj::get_description ( in  o, in  flag_short  )

inherited

Returns description string

Precedence according with flag_short:

• 0: title > short > classtitle
• 1: short > title > classtitle

Parameters

flag_short=0

I am sealing this to make sure that no class will try to improvise on this function.

function block::get_grades ( in  o, in  params  )

inherited

Abstract. Method to get the per-feature grades. BMTool stuff.

function block::get_gradeslegend ( in  o, in  params  )

inherited

Abstract. Method to get block title based on passed parameters. BMTool stuff.

function irobj::get_html ( in  o, in  flag_stylesheet  )

inherited

Parameters

flag_stylesheet=1

Whether to include the stylesheet in the HTML

function block_cascade_base::get_L_fea_names	(	in	o,
		in	idxs
	)

Mimicking a fcon_linear::get_L_fea_names()

Calls the get_L_fea_names from the first block that has this method (SEARCHING BACKWARDS)

function block_cascade_base::get_L_fea_x

(

in

o

)

function block_cascade_base::get_linear1 ( in  o )

protected

Retrieves the first linear block.

function block_cascade_base::get_loadings

(

in

o

)

Cascades blocks' loadings matrices. Works only if one or all blocks provide one loadings matrix of course, i.e., they all represent linear transforms.

function block_cascade_base::get_methodname	(	in	o,
		in	flag_short
	)

Calls get_methodname() for all blocks.

Parameters

flag_short=0

function irobj::get_params ( in  o, in  data  )

inherited

Calls Parameters GUI.

If flag_params, tries uip_<class>.m. If fails, tries uip_<ancestor>.m and so on

function irobj::get_report ( in  o )

inherited

Object reports are plain text. HTML would be cool but c'mon, we don't need that sophistication.

function block_cascade_base::get_xname

(

in

o

)

function block_cascade_base::get_xunit

(

in

o

)

Feature names: takes the xname property from the first linear block.

function block_cascade_base::get_yname

(

in

o

)

y-name: takes the yname property from the last block that has it

Returns

yname. Defaults to an empty string.

function block_cascade_base::get_yunit

(

in

o

)

y-unit: takes the yunit property from the last block that has it

Returns

yunit. Defaults to an empty string.

function get block_cascade_base::L

(

in

o

)

function get block_cascade_base::L_fea_x

(

in

o

)

function get block_cascade_base::no_blocks

(

in

o

)

function irobj::setbatch ( in  o, in  params  )

inherited

Sets several properties of an object at once.

Parameters

o
params	Cell followint the pattern {'property1', value1, 'property2', value2, ...}

function block::train ( in  o, in  data, in  varargin  )

inherited

Trains block.

function block::use ( in  o, in  data  )

inherited

Applies block to data.

function get block_cascade_base::v

(

in

o

)

Retrieves v from last block.

function get block_cascade_base::xname

(

in

o

)

function get block_cascade_base::xunit

(

in

o

)

function get block_cascade_base::yname

(

in

o

)

function get block_cascade_base::yunit

(

in

o

)

Member Data Documentation

Property block_cascade_base::blocks

Cell of block objects.

Definition at line 20 of file block_cascade_base.m.

Property block_cascade_base::classlabels

Class labels. clssr mimicking. Retrieves the classlabels property from the last block.

Definition at line 57 of file block_cascade_base.m.

Property irobj::classtitle

protectedinherited

Class Title. Should have a descriptive name, as short as possible.

Definition at line 50 of file irobj.m.

Property irobj::color

inherited

=[0, .8, 0]. multipurpose feature, routines may use it for different things. Major use is to change the background of objtool and blockmenu. See also classes_html.m

Definition at line 42 of file irobj.m.

Property block_cascade_base::decisionthreshold

Decision threshold. decider mimicking. Retriever the decisionthreshold property from some decider it finds along the blocks

Definition at line 64 of file block_cascade_base.m.

Property block::flag_bootable

protectedinherited

=0. (High-Level setting and internal function) Whether or not the block is bootable.

Definition at line 14 of file block.m.

Property block::flag_booted

protectedinherited

=0. Set to 1 by boot() after booting the block

Definition at line 69 of file block.m.

Property block_cascade_base::flag_checked

protected

Definition at line 84 of file block_cascade_base.m.

Property block_cascade_base::flag_crossc

=1. Whether to cross-calculate outputs when it is the case. The case is: in training; and the component block is level 1 (trainable); and the component block is not the last block. If flag_crossc is false, the same dataset will be used to train and to calculate the block output.

Definition at line 25 of file block_cascade_base.m.

Property block_cascade_base::flag_decider

protected

Whether the block is able to mimic a decider. This is calculated at boot time.

Definition at line 75 of file block_cascade_base.m.

Property block_cascade_base::flag_fcon_linear

protected

Whether the block is able to mimic a fcon_linear. This is calculated at boot time.

Definition at line 72 of file block_cascade_base.m.

Property block::flag_fixednf

protectedinherited

=1. (internal function) If true, dataset number of features will be checked upon training and using. Ignored if o.flag_trainable is 0.

Definition at line 28 of file block.m.

Property block::flag_fixedno

protectedinherited

=0. (internal function) If true, dataset number of observations will be checked upon training and using. Ignored if o.flag_trainable is 0.

Definition at line 31 of file block.m.

Property block::flag_incrtrain

protectedinherited

=0. (internal function). Whether or not the block accepts incremental training. The meaning is:

• If YES, it means that the block can adapt/evolve everytime its train() method is called
• If NO, the block can be trained only once, and calling its train() method many times can lead to unpredictable results

Definition at line 23 of file block.m.

Property block::flag_multiin

protectedinherited

=0. (High-Level setting (gencode)) Whether block allows/expects multiple objects as input.

Definition at line 35 of file block.m.

Property block::flag_out

protectedinherited

=1. (High-Level setting (gencode)) Whether the block generates any output at all (counterexample: vis blocks)

Definition at line 38 of file block.m.

Property irobj::flag_params

protectedinherited

=1. (GUI setting) Whether to call a GUI when the block is selected in blockmenu.m . If true, a routine called "uip_"<class name> will be called.

Definition at line 57 of file irobj.m.

Property block::flag_train_inliers_only

protectedinherited

If true, train() will pass on to do_train() a dataset with inliers only. If this flag is true, flag_train_require_inliers will be ignored, because flag_train_inliers_only being true is one way to solve the "inliers requirement".

Definition at line 46 of file block.m.

Property block::flag_train_require_inliers

protectedinherited

=1. If true, train() will give an error if the dataset has outliers. This is true by default, because the developer should be aware of outliers being inputted into a training algorithm.

Definition at line 51 of file block.m.

Property block::flag_trainable

protectedinherited

=0. (High-Level + internal function). Whether or not the block can be trained, or completely non-data-based.

Definition at line 17 of file block.m.

Property block::flag_trained

protectedinherited

=0. Set to 1 by train() if training is successful; set back to 0 after booting.

Definition at line 66 of file block.m.

Property irobj::flag_ui

protectedinherited

(GUI setting) Whether to "publish" in blockmenu and datatool. Note that a class can be "published" without a GUI (set flag_params=0 in this case, at the class constructor).

Definition at line 60 of file irobj.m.

Property block_cascade_base::idx_decider

protected

Index of decider. This is calculated at boot time.

Definition at line 81 of file block_cascade_base.m.

Property block_cascade_base::idx_linear1

protected

Index of first linear block. This is calculated at boot time.

Definition at line 78 of file block_cascade_base.m.

Property block::inputclass

protectedinherited

='irdata'. (High-Level setting) Class or classes (can be string or cell of strings) that the block can deal with. Allows for objtool and datatool to know (when appropriate) which blocks are applicable to the selected object(s).

Definition at line 11 of file block.m.

Property block_cascade_base::L

Loadings matrix. fcon_linear mimicking. Calculates loadings matrix by multiplying (L = block1.L*block2.L*...).

Definition at line 37 of file block_cascade_base.m.

Property block_cascade_base::L_fea_names

Loadings feature names. fcon_linear mimicking.

Definition at line 42 of file block_cascade_base.m.

Property block_cascade_base::L_fea_x

Feature x-axis. fcon_linear mimicking. Retrieves the L_fea_x from the first block.

Definition at line 45 of file block_cascade_base.m.

Property irobj::moreactions

protectedinherited

(GUI setting) String cell containing names of methods that may be called from the GUIs

Definition at line 63 of file irobj.m.

Property block::nf

protectedinherited

=-1. Number of features. Cleared at boot(), assigned or reinforced at train().

Definition at line 60 of file block.m.

Property block::no

protectedinherited

=-1. Number of observations.

Definition at line 63 of file block.m.

Property block_cascade_base::no_blocks

protected

Number of blocks.

Definition at line 69 of file block_cascade_base.m.

Property block_cascade_base::sgs_crossc

SGS to do the cross-calculations when necessary. If needed and empty, a default one will be used.

Definition at line 28 of file block_cascade_base.m.

Property irobj::short

protectedinherited

Short for the method name.

Definition at line 53 of file irobj.m.

Property block::time_train

protectedinherited

Trainings time.

Definition at line 73 of file block.m.

Property block::time_use

protectedinherited

Use time.

Definition at line 76 of file block.m.

Property irobj::title

inherited

Definition at line 38 of file irobj.m.

Property block_cascade_base::v

Feature indexes. fsel mimicking. Retrieves the v property from the last block.

Definition at line 60 of file block_cascade_base.m.

Property block_cascade_base::xname

x-axis name. fcon_linear mimicking. Retrieves the xname from the first block.

Definition at line 48 of file block_cascade_base.m.

Property block_cascade_base::xunit

Definition at line 50 of file block_cascade_base.m.

Property block_cascade_base::yname

Definition at line 52 of file block_cascade_base.m.

Property block_cascade_base::yunit

Definition at line 54 of file block_cascade_base.m.

---

The documentation for this class was generated from the following file:

• block_cascade_base.m
